£199.99

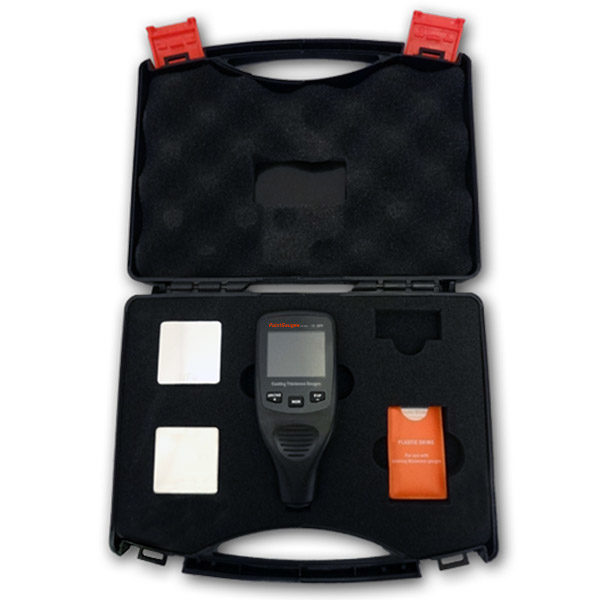

Premium coating thickness gauge with 99 place memory, statistics and colour LED display. Case, test blocks and calibrated test shims included.

  • The FN Evo Paint Thickness Gauge

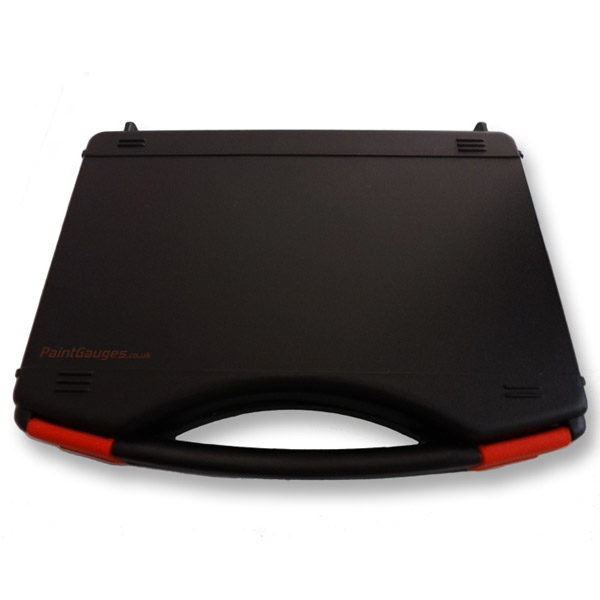

  • Hard-shell carrying/storage case
  • User manual (English)
  • 2x AAA alkaline batteries
  • 2x Substrate test pieces (1 x steel and 1 x aluminium)
  • 5x Plastic calibrated thickness test shims

In Stock (Available to ship worldwide from the UK)


Share this:

The FN Evo gauge has a rich feature set and a bright multi-colour LED display that is easily readable even in dimly lit conditions. It combines and enhances on the features of our FN Pro and FN Plus coating thickness gauges, featuring both a memory and statistical functions. It is high spec and quick and easy to use – simply hold the sensor against the surface to be measured and the coating thickness is automatically displayed on the large colour LED screen.

The gauge also automatically calculates and displays statistics of minimum, maximum, average, and standard deviation of the thicknesses read. One touch of a button flips the display readout upside down for easy reading at different angles, for use on horizontal surfaces or undersides.

  • Auto measure – simply place the probe on the surface to be measured
  • Auto detection and display of substrate type (Fe/non-Fe)
  • Integrated dual sensors – enables reading on ferrous and non-ferrous substrates with automatic deteiont, no probe switching, and no user intervention
  • Large colour LCD display – for clear, error free readings even in dimly lit environments
  • Display flip – easy reading in various positions and of panels in various orientations
  • 99 place memory – automatically stores most recent measurements
  • Statistics calcuation – automatic display and calculation of average, minimum, maximum, and standard deviation
  • Highly automated – three buttons control all functions

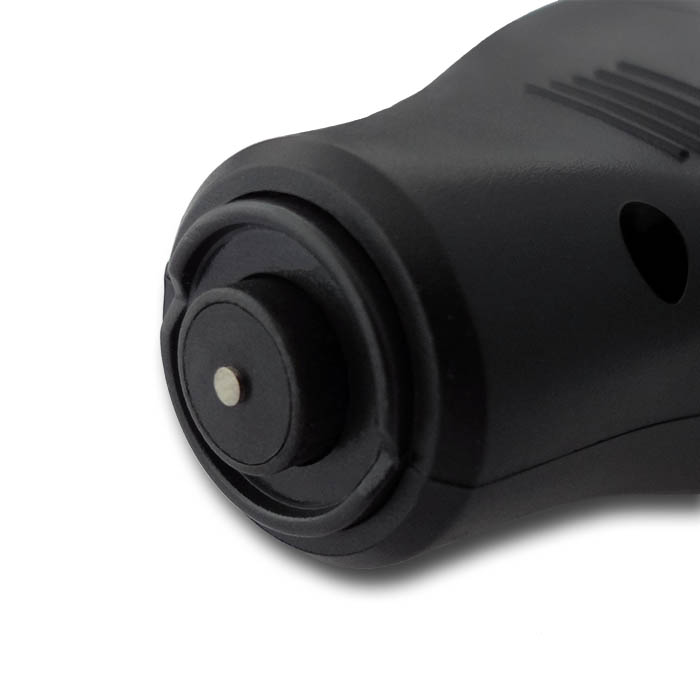

  • V-notched probe – eases reading on curved surfaces
  • Plastic probe surround – assists in protecting surfaces from damage
  • Contoured fingergrips – enable operation with just thumb and forefinger
  • Metric and Imperial units supported (µm/mil)
  • Slim and lightweight – fits into a pocket and is discreet in usage
Units

µm (aka micrometer or micron = 1/1000mm) and mil (aka Thou = 1/1000 inch)

Range

0 to 1,250µm, 0 to 49mil

Accuracy

+/-(2µm+3%), +/-(0.1mil+3%)

Resolution

1µm, 0.1mil

Sensor type

Combined Ferrous and Non-Ferrous

Measuring technology

Magnetic induction and eddy current

Dimensions

116 x 50 x 27 mm

Weight

64g (excluding batteries)

Batteries

2 x AAA

Standards

CE approved, ISO 2178, ISO 2360
