Sale!

£189.99 £159.99

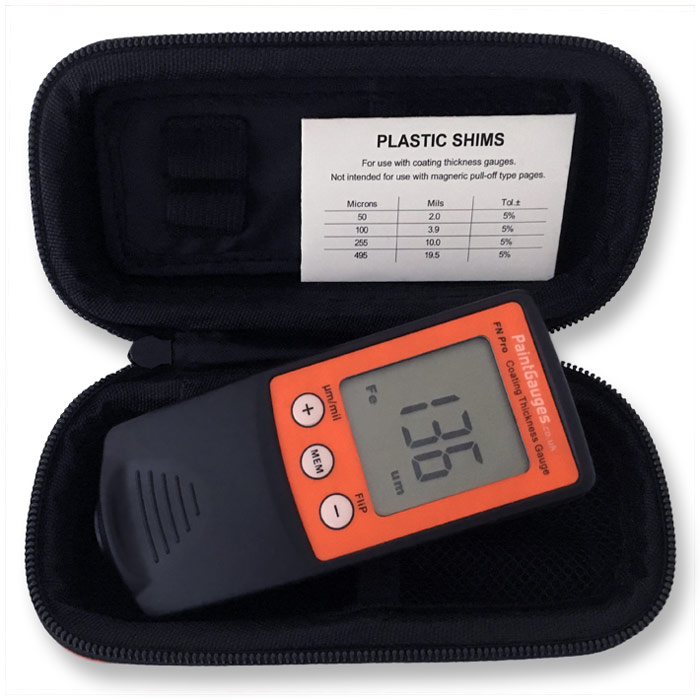

Coating thickness gauge with 10 place memory and large LCD display. Case, test blocks and calibrated test shims included.

  • The FN Pro Paint Thickness Gauge

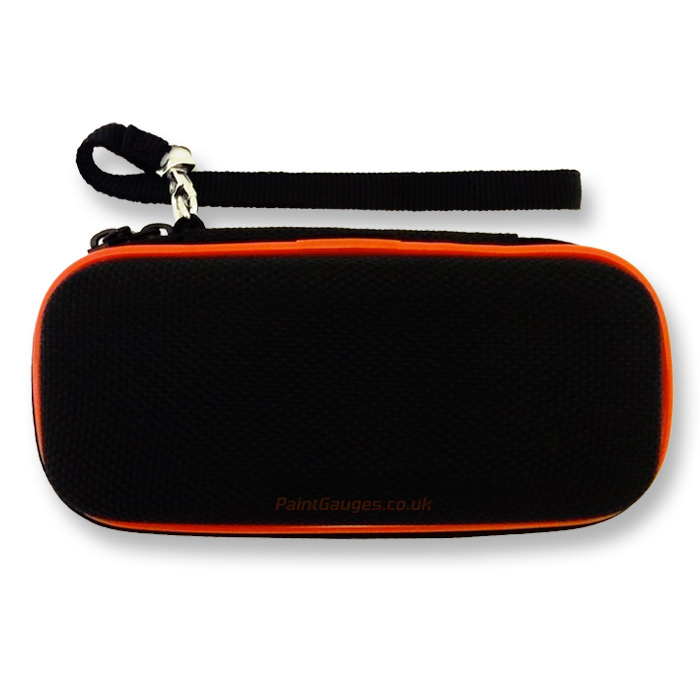

  • Hard-shell carrying/storage case
  • User manual (English)
  • 1x AAA alkaline battery
  • 2x Substrate test pieces (1 x steel and 1 x aluminium)
  • 4x Plastic calibrated thickness test shims

In Stock (Available to ship worldwide from the UK)


Share this:

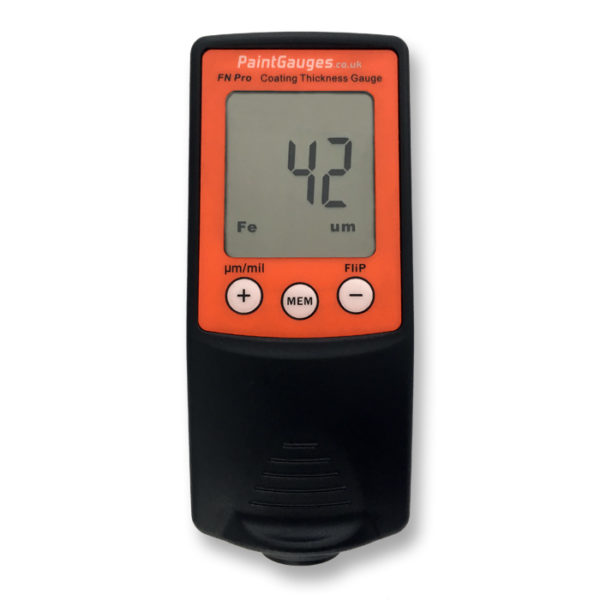

The FN Pro gauge is our lowest priced coating thickness gauge.  It is quick and easy to use – simply hold the sensor against the surface to be measured and the coating thickness is automatically displayed on the large LCD screen. The reading is also automatically stored to the inbuilt memory – from which the last ten readings can be recalled. One touch of a button switches the gauge between reading in µm or mil and one touch of a button flips the display readout upside down for easy reading at different angles.

Our paint thickness gauges are high specification, professional grade measuring devices suitable for consumer and commercial use.

  • Auto measure – simply place the probe on the surface to be measured
  • Auto detection and display of substrate type (Fe/non-Fe)
  • Integrated dual sensors – enables reading on ferrous and non-ferrous substrates with automatic deteiont, no probe switching, and no user intervention
  • Large LCD display – to ease reading
  • Display flip – easy reading in various positions and of panels in various orientations
  • 10 place memory – automatically stores most recent measurements
  • Highly automated – three buttons control all functions
  • V-notched probe – eases reading on curved surfaces
  • Plastic probe surround – assists in protecting surfaces from damage
  • Contoured fingergrips – enable operation with just thumb and forefinger
  • Metric and Imperial units supported (µm/mil)
  • Slim and lightweight – fits into a pocket and is discreet in usage
Units

µm (aka micrometer or micron = 1/1000mm) and mil (aka Thou = 1/1000 inch)

Range

0 to 1,250µm, 0 to 49mil

Accuracy

+/-(2µm+3%), +/-(0.1mil+3%)

Resolution

1µm, 0.1mil

Sensor type

Combined Ferrous and Non-Ferrous

Measuring technology

Magnetic induction and eddy current

Dimensions

110 x 45 x 30 mm

Weight

68g (excluding battery)

Batteries

1 x AAA

Standards

CE approved, ISO 2178, ISO 2360
